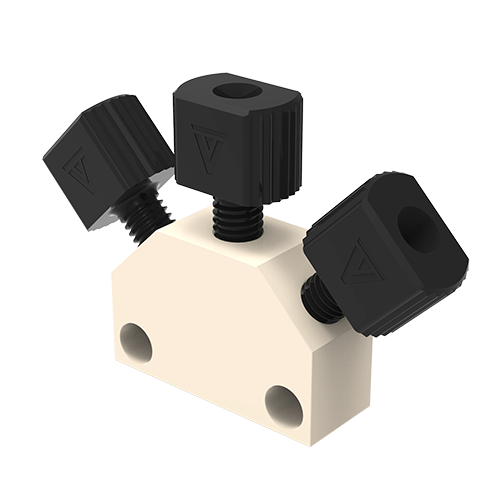

High Pressure Biocompatible PEEK Mixing Tee - With Fittings

Part Number #JR-9000-0670

$ 81.50 Sale Save

This completely biocompatible mixing tee ensures thorough mixing results from the turbulence generated by the introduction angle of the solvents as well as by the flow through our titanium filter element. The tee can be used for high-pressure gradient mixing as well as for post-column reactions.

Made from high-quality PEEK with a built-in biocompatible titanium filter.

More information on Properties of Polymers and Chemical Resistance of Materials


For 1/16" OD tubing

Material:

Polyetheretherketone (PEEK) with a titanium filter element

Porosity: 10 µm

Threads: 10-32

Bore sizes:

25.4 mm diameter

9.5 mm thick

Pressure Rating: 350 bar (5,000 psi)

(Varies with tubing material and ID)
