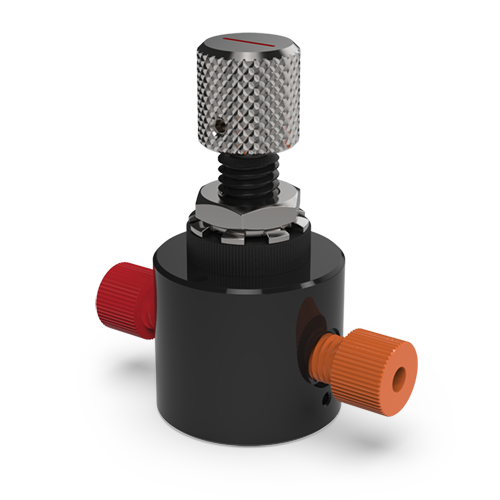

Micro Valves for LC and GC - 180º Flowpath, 2 Port

Micro Valves for LC and GC - 180º Flowpath, 2 Port

Part Number #JR-660200

VICI Precision Sampling

$ 95.60 USD Sale • Save
Description

Simplify your liquid or gas handling application with a VICI Precision Sampling Micro valve. In a compact 1” design, the unique fitting detail allows a leak-free seal with no potential for rotor damage from over-tightening. Micro valves come in a variety of flow path configurations (see image), pressure rated to 100 psi liquid and 50 psi air.

.

Micro valves offer convenient panel mounting (8 mm hole required, max. 4.5mm thickness of the panel mount hole), with internal parts made of PEEK and PTFE.

Flowpath configurations
Flowpath

Includes fittings for 1/8" OD tubing:

  • 1 PPS flangeless hex-head nuts per port
  • 1 PCTFE collapsible ferrules per port
  • 1 Color-Sleeve adapter per port


Specs
Tubing OD(s) For 1/16" and 1/8" OD Tubing - Flangeless Connections
Threads 1/4-28 threads
Bore Size
 1.50 mm
Body Size 44.70 mm H x 27.94 mm Diameter
Wetted parts Materials PEEK, PTFE
Body Material POM
Nut Material PPS
Ferrule Materials PCTFE (1/8") or PEEK (1/16")



More Info

See Properties of Polymers


TECH TIPS

  • Use our impermeable tubing to avoid gas diffusion in the solvent lines
  • While these valves are typically used with collapsible ferrules, inverted ferrules or flanged connections can also be used
